Availability: | |
---|---|
Quantity: | |

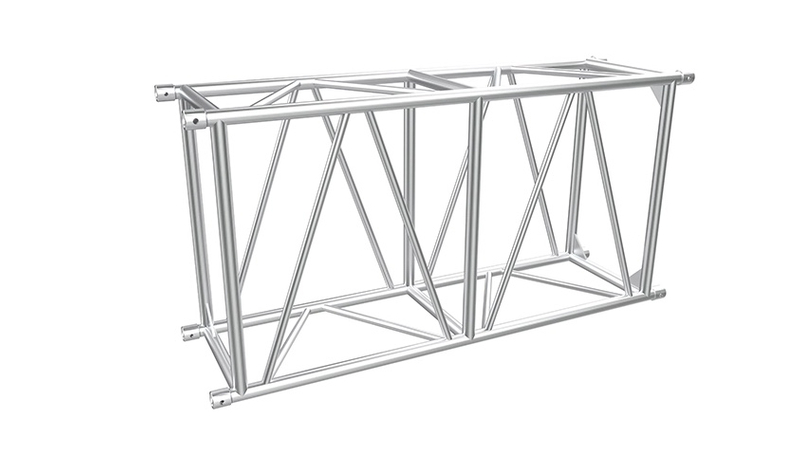

- Product Physical Picture -
F104-1
F104-2
F104-3

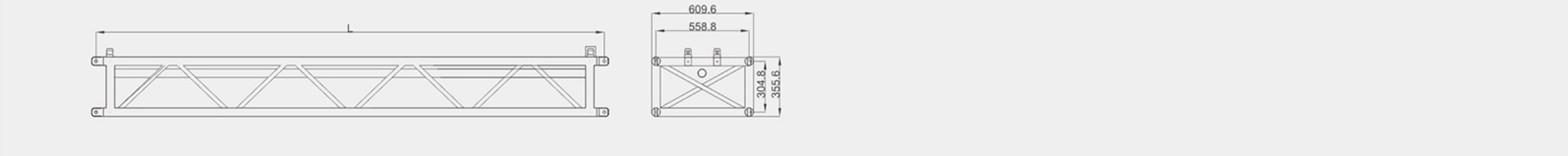

- Vertical View |
![]() |
- Side View |
![]() |
- Product Bearing Table -
Span | UDL | CPL | 1/3 Point Load | 1/4 Point Load | 1/5 Point Load | |||||
mm | kg/m | mm** | kg | mm | kg(2x) | mm | kg(3x) | mm | kg(4x) | mm |
4 | 1141 | 13 | 2315 | 11 | 1736 | 12 | 1157 | 13 | 964 | 14 |
6 | 501 | 30 | 1502 | 24 | 1126 | 26 | 751 | 27 | 626 | 29 |
8 | 271 | 53 | 1083 | 44 | 812 | 46 | 541 | 49 | 451 | 51 |
8 | 271 | 53 | 1083 | 44 | 812 | 46 | 541 | 49 | 451 | 51 |
8 | 271 | 53 | 1083 | 44 | 812 | 46 | 541 | 49 | 451 | 51 |
8 | 271 | 53 | 1083 | 44 | 812 | 46 | 541 | 49 | 451 | 51 |
8 | 271 | 53 | 1083 | 44 | 812 | 46 | 541 | 49 | 451 | 51 |
8 | 271 | 53 | 1083 | 44 | 812 | 46 | 541 | 49 | 451 | 51 |
8 | 271 | 53 | 1083 | 44 | 812 | 46 | 541 | 49 | 451 | 51 |
8 | 271 | 53 | 1083 | 44 | 812 | 46 | 541 | 49 | 451 | 51 |
8 | 271 | 53 | 1083 | 44 | 812 | 46 | 541 | 49 | 451 | 51 |
8 | 271 | 53 | 1083 | 44 | 812 | 46 | 541 | 49 | 451 | 51 |
8 | 271 | 53 | 1083 | 44 | 812 | 46 | 541 | 49 | 451 | 51 |
- Product Detail Picture -
(构图较为复杂,建议上传图片)
- Product Advantages -
| ![]() |
![]() | ![]() |
![]() | ![]() |
![]() | ![]() |
- Logistics Transportation Data -
Product Name | U-shaped Frame | Folding Trolley | U-shaped Frame | Folding Trolley |
Product Specifications | 10inch | 8inch | ||
Product Weight | 36kg | 43kg | 30.5kg | 40kg |
Product Volume | 0.77m³ | 0.54m³ | 0.62m³ | 0.43m³ |
Product Volume | 0.77m³ | 0.54m³ | 0.62m³ | 0.43m³ |
Product Volume | 0.77m³ | 0.54m³ | 0.62m³ | 0.43m³ |
Product Volume | 0.77m³ | 0.54m³ | 0.62m³ | 0.43m³ |
- Service Process -
1. Understand the project site planning
The professional team will fully understand the site size and project requirements provided by you.
2. Design and determine the scheme
The professional designer team will design products that meet your needs for free.
3. Quotation and contract signing
Once the scheme is determined, after detailed accounting, we will provide you with a satisfactory quotation!
4. Pay deposit and arrange production
The reasonable production schedule, exquisite positioning, correction and welding technology will bring you different quality of blocking bars (nets)!
5. Product inspection
Cast excellence with details. In addition to the internal product quality inspection and control standards, the European Union ENISO3834 aluminum alloy welding standards and hardware machining industry standards are also cited to ensure superior quality.
6. Nationwide delivery
Global supply
Professional logistics team, whether you choose logistics or need us to deliver goods to your door, ensure timely delivery!
![]() | 7. After sales support and maintenance Provide detailed product installation instructions and video demonstration for a pair of professional customer service and follow up orders, and solve any questions for you at any time, so that you can be more relieved and delayed! |
- Product Physical Picture -
F104-1
F104-2
F104-3
- Vertical View |
![]() |
- Side View |
![]() |
- Product Bearing Table -
Span | UDL | CPL | 1/3 Point Load | 1/4 Point Load | 1/5 Point Load | |||||
mm | kg/m | mm** | kg | mm | kg(2x) | mm | kg(3x) | mm | kg(4x) | mm |
4 | 1141 | 13 | 2315 | 11 | 1736 | 12 | 1157 | 13 | 964 | 14 |
6 | 501 | 30 | 1502 | 24 | 1126 | 26 | 751 | 27 | 626 | 29 |
8 | 271 | 53 | 1083 | 44 | 812 | 46 | 541 | 49 | 451 | 51 |
8 | 271 | 53 | 1083 | 44 | 812 | 46 | 541 | 49 | 451 | 51 |
8 | 271 | 53 | 1083 | 44 | 812 | 46 | 541 | 49 | 451 | 51 |
8 | 271 | 53 | 1083 | 44 | 812 | 46 | 541 | 49 | 451 | 51 |
8 | 271 | 53 | 1083 | 44 | 812 | 46 | 541 | 49 | 451 | 51 |
8 | 271 | 53 | 1083 | 44 | 812 | 46 | 541 | 49 | 451 | 51 |
8 | 271 | 53 | 1083 | 44 | 812 | 46 | 541 | 49 | 451 | 51 |
8 | 271 | 53 | 1083 | 44 | 812 | 46 | 541 | 49 | 451 | 51 |
8 | 271 | 53 | 1083 | 44 | 812 | 46 | 541 | 49 | 451 | 51 |
8 | 271 | 53 | 1083 | 44 | 812 | 46 | 541 | 49 | 451 | 51 |
8 | 271 | 53 | 1083 | 44 | 812 | 46 | 541 | 49 | 451 | 51 |
- Product Detail Picture -
(构图较为复杂,建议上传图片)
- Product Advantages -
| ![]() |
![]() | ![]() |
![]() | ![]() |
![]() | ![]() |
- Logistics Transportation Data -
Product Name | U-shaped Frame | Folding Trolley | U-shaped Frame | Folding Trolley |
Product Specifications | 10inch | 8inch | ||
Product Weight | 36kg | 43kg | 30.5kg | 40kg |
Product Volume | 0.77m³ | 0.54m³ | 0.62m³ | 0.43m³ |
Product Volume | 0.77m³ | 0.54m³ | 0.62m³ | 0.43m³ |
Product Volume | 0.77m³ | 0.54m³ | 0.62m³ | 0.43m³ |
Product Volume | 0.77m³ | 0.54m³ | 0.62m³ | 0.43m³ |
- Service Process -
1. Understand the project site planning
The professional team will fully understand the site size and project requirements provided by you.
2. Design and determine the scheme
The professional designer team will design products that meet your needs for free.
3. Quotation and contract signing
Once the scheme is determined, after detailed accounting, we will provide you with a satisfactory quotation!
4. Pay deposit and arrange production
The reasonable production schedule, exquisite positioning, correction and welding technology will bring you different quality of blocking bars (nets)!
5. Product inspection
Cast excellence with details. In addition to the internal product quality inspection and control standards, the European Union ENISO3834 aluminum alloy welding standards and hardware machining industry standards are also cited to ensure superior quality.
6. Nationwide delivery
Global supply
Professional logistics team, whether you choose logistics or need us to deliver goods to your door, ensure timely delivery!
![]() | 7. After sales support and maintenance Provide detailed product installation instructions and video demonstration for a pair of professional customer service and follow up orders, and solve any questions for you at any time, so that you can be more relieved and delayed! |
Attribute | |
Country | China |
Brand | Shinestage |
Mod | F104 |
Custom Properties | |
Item | 580*1010mm Spigot Rectangular Truss |
Dimension | 580mm*1010mm |
Maaterial | Aluminum 6082 T6 |
Main tube | 50*5mm |
Vice tube | 50*3mm |
Brace tube | 30*3mm |
Surface | Brace tube on 4 sides |
Weight | About 24.19kg/m |
Max span | 33m |
Pin position | Diagonal |
Length | 1-4m |
Color | Silver, Powder coating Black, other color is available |
Package | Air bubble film |
Certificate | CE, TUV, SGS |
Application | Outdoor big Concert, Stage Events, Audio Show, Music show |
Attribute | |
Country | China |
Brand | Shinestage |
Mod | F104 |
Custom Properties | |
Item | 580*1010mm Spigot Rectangular Truss |
Dimension | 580mm*1010mm |
Maaterial | Aluminum 6082 T6 |
Main tube | 50*5mm |
Vice tube | 50*3mm |
Brace tube | 30*3mm |
Surface | Brace tube on 4 sides |
Weight | About 24.19kg/m |
Max span | 33m |
Pin position | Diagonal |
Length | 1-4m |
Color | Silver, Powder coating Black, other color is available |
Package | Air bubble film |
Certificate | CE, TUV, SGS |
Application | Outdoor big Concert, Stage Events, Audio Show, Music show |
![]() | ![]() | ![]() |
![]() | ![]() | ![]() |
![]() | ![]() | ![]() |
![]() | ![]() | ![]() |
