Reliable audio delay tower solutions for outdoor concerts, festivals and large-scale events.

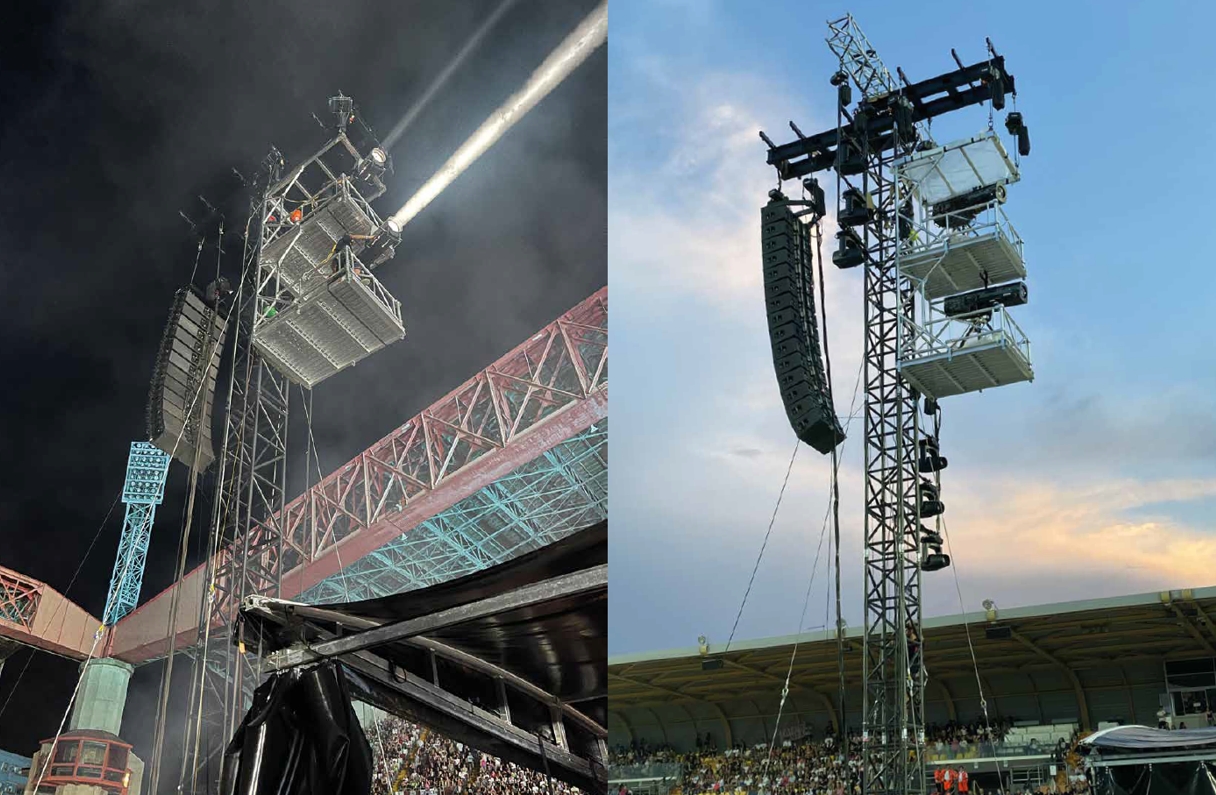

ShineStage Delay Towers are designed to safely support line array loudspeakers and PA systems in mid-field and far-field positions, extending sound coverage while keeping sightlines clean and the structure stable.
A Delay Tower is a freestanding rigging tower used to hang line array loudspeakers or PA systems further back in the audience area. By adding time-aligned speaker positions, it improves intelligibility and SPL coverage for audiences that are far away from the main stage.
ShineStage combines years of truss manufacturing experience with project-proven tower designs to offer a robust delay tower system for touring, rental and fixed outdoor applications.
Purpose-built for line array and PA loudspeakers
Optimized geometry for vertical audio loads and side pull from arrays
Maximum working height: up to 22 m
Approximate SWL: 2 t per side, 4 t total for dual-hang configurations (standard model)
Main tower sections available in 520 × 520 mm and 800 × 800 mm configurations
Compatible with ShineStage heavy-duty truss systems and existing inventories
Steel or aluminium base frames with extendable outriggers for increased footprint
Optional base extensions and bracing struts to meet different load and ground conditions
Modular truss design for container or truck loading
Repeated use with standard truss and accessories reduces rental and ownership cost
Design concept supports combined use as Delay Tower + Follow Spot Tower, similar to leading international solutions
Outdoor music festivals and touring productions
Stadium and arena delay positions
City square and public event PA reinforcement
Long-throw line array hangs for speech and live music
Temporary event structures where cranes or permanent rigging points are not available
Standard working heights: 14 m and 22 m (custom solutions on request)
Designed SWL (standard model): up to 2 t per side / 4 t total for audio loads, including rigging hardware and safety factors as per engineering calculations
520 × 520 mm heavy-duty aluminium truss (medium-size audio arrays)
800 × 800 mm heavy-duty aluminium truss (large arrays and higher trim heights)
Square base frame with leveling feet
Base extension beams to increase span up to approx. 7.5 m footprint (depending on model)
Diagonal bracing struts for column stabilisation
Suitable for most major line array brands (adapter frames available on request)
Can be integrated with ShineStage stage roofs, ground support systems and crowd-control layouts
Exact load charts, wind ratings and calculation reports are provided project-by-project according to local regulations and engineering standards.
ShineStage has extensive experience in stage structures, truss systems and audio support towers, including vertical audio support towers and high-capacity sound reinforcement towers used in large-scale shows.
Professional structural design and verification
Static calculations and drawings available for approval
Matching accessories (bases, extensions, braces) from a single manufacturer
From concept and drawing review to on-site guidance, ShineStage works with rental companies, integrators and event organizers worldwide to deliver safe and efficient delay tower solutions.
Single-side line array hang
Optional second side for mirrored arrays (dual delay)
Main vertical array plus front-fill or side-fill speakers on the cross beam
Concept ready for adding follow-spot platforms so one structure can serve both audio and lighting positions in large venues
Available options may vary by region. Please consult ShineStage for detailed configuration advice.
Need a custom delay tower for a specific venue or festival?
ShineStage can provide:
Project-specific 2D and 3D drawings
Load charts and calculation reports
Custom interface plates for your loudspeaker brand
Matching transport and storage solutions
Contact ShineStage
For technical datasheets, engineering support or a quotation, please contact our sales team.
