LB-02 Aluminum Events Layer Stage Portable Platform

Share to:

Flexible stage structures that stay light and ready for any event.
Whether it’s a large exhibition, an outdoor performance, or a city celebration, the stage can be customized in size and configuration to match on-site requirements.
Its lightweight design makes transportation easier, speeds up installation, and significantly reduces overall execution costs.
At the same time, it supports a wide range of stage and lighting equipment, making it suitable for concerts, music festivals, exhibitions, and more—delivering stable, efficient, and reliable performance for every event.

Availability:

Quantity:



Inquire Add to Basket

Model:
LB-02
Brand:
Shinestage

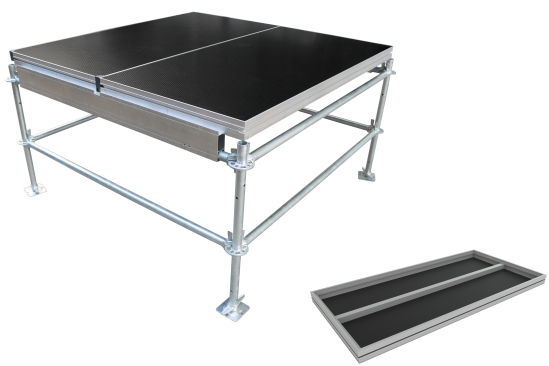

未命名 -1

Flexible stage structures that stay light and ready for any event

Whether it’s a large exhibition, an outdoor performance, or a city celebration, the stage can be customized in size and configuration to match on-site requirements.

Its lightweight design makes transportation easier, speeds up installation, and significantly reduces overall execution costs.

At the same time, it supports a wide range of stage and lighting equipent, making it suitable for concerts, music festivals, exhibitions, and more—delivering stable, efficient, and reliable performance for every event.

Product Specifications
Product Category	Stage Support	Stage Panel	Standard Size & Weight	1000x2000mm (750KG/m³) 1220x2440mm (650KG/m³)
Model	LFE-02	LAL-02	Minimum Height	95mm
Material	High-Strength Steel	6061-T6 Aluminum Frame with 18mm Anti-Slip Panel	Maximum Height	6000mm
Self-Weight of 2×2 m Unit	146KG	76KG	Certification	ISO / SGS / CE / TUV

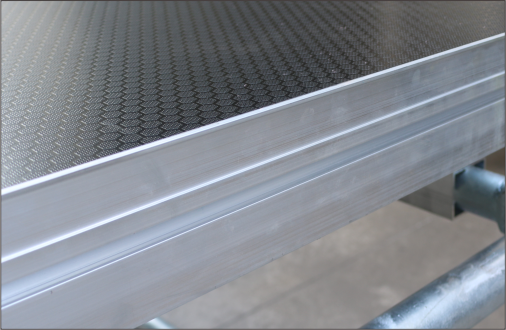

Panel (Standard)

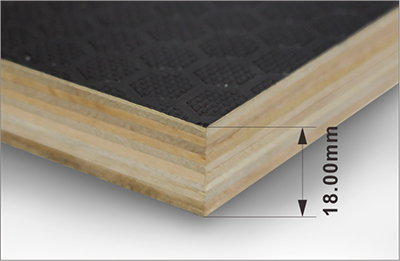

The LB-02 stage deck uses 18mm-thick high-density plywood specially designed for international stages. It is made from compressed solid wood and features a non-slip surface treatment. The panel is fire-retardant, wear-resistant, and anti-oxidation.

Product Details

Stage Frame

Manufactured from full aluminum alloy of aerospace-grade 6061-T6, the material has a tensile strength Rm (MPa) ≥ 260 and a yield strength Rₚ0.2 (MPa) ≥ 240, meeting the requirements for high-load capacity.

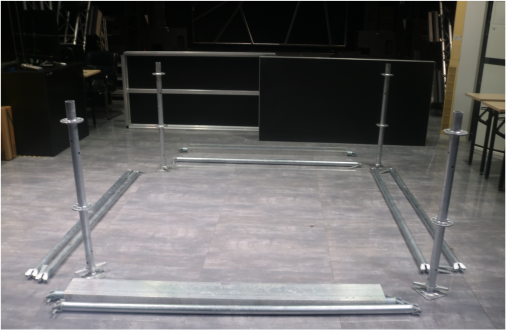

Modular Design

This stage adopts the Leia support system. Its modular design ensures a stable structure while allowing flexible assembly and disassembly, significantly improving efficiency.

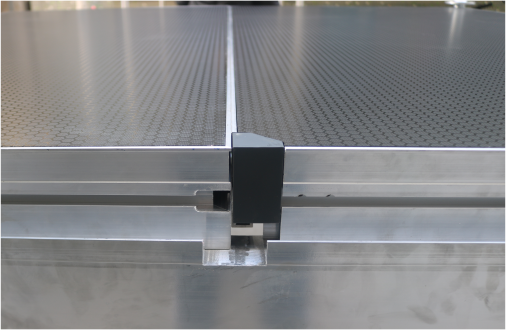

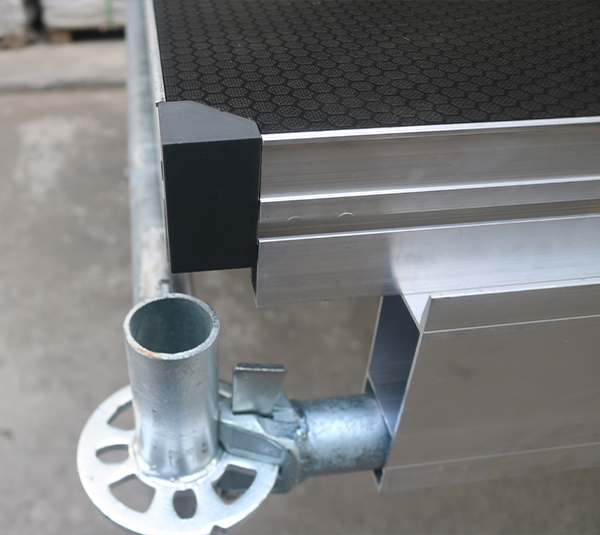

Rubber-Corner / Standard

The panels are available in two structural options: Standard and Rubber-Corner. The Rubber-Corner design allows for quick removal of the rubber corners and can be flexibly combined with the Leia frame in multi-level stage structures. Whether for single-layer use or complex assemblies, it enables efficient installation and broad compatibility, meeting the needs of various stage scenarios.

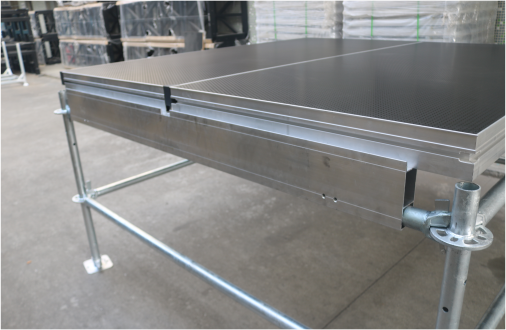

Ultra-Strong Crossbeam

The stage support structure features ultra-strong crossbeams, effectively enhancing overall load-bearing capacity and structural stability, ensuring that multi-level stages remain stable and safe under high-load conditions.

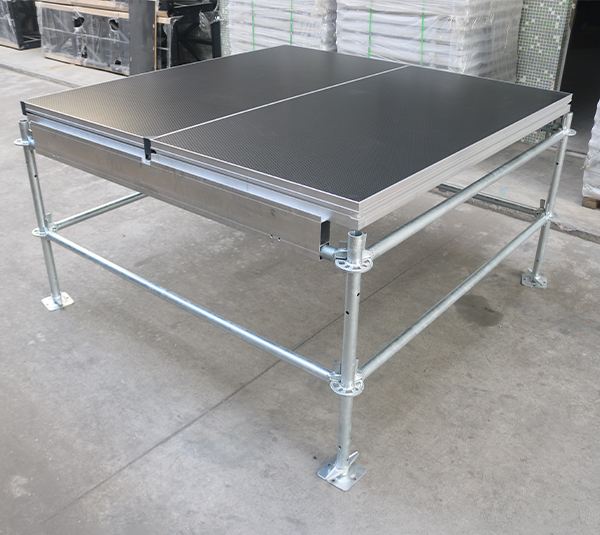

未标题-4
