The Art and Science of Manufacturing: An In-depth Look at Shinestage's Production Process

The exceptional performance of stage truss, the "steel backbone" behind large-scale events, is no accident. It's the result of cutting-edge manufacturing processes, rigorous quality standards, and dedicated craftsmanship. This article will take you inside the Shinestage factory, starting from a single bar of shiny aluminum alloy, to fully deconstruct every stage of production—from design blueprint to final packaging. We’ll delve into the precision of CNC cutting, the masterful art of TIG welding, and the strictness of our multi-stage quality control, revealing the technological commitment behind every single product. This is more than just a walkthrough; it's a deep exploration of the manufacturing ethos and Shinestage's core competitive advantage.

I. From Raw Material to Initial Processing: Quality Control at the Source

Any high-quality industrial product begins with the meticulous selection of its raw materials. For stage truss, choosing the right aluminum alloy is the first and most critical step.

1. Meticulous Raw Material Selection: The Secret of 6082-T6 Aluminum Alloy

Shinestage primarily uses the international standard 6082-T6 high-strength aluminum alloy. This material is widely used in aviation, railways, and large-scale architectural structures because of its outstanding properties. Why are we so dedicated to it?

• Superior Mechanical Properties: Heat-treated 6082-T6 has exceptional tensile strength, yield strength, and hardness, far surpassing regular aluminum. This allows the truss to withstand various external stresses and ensures its safety under heavy loads.

• Excellent Machinability: Despite its high strength, 6082-T6 offers good weldability, extrudability, and mechanical processing performance, which allows complex truss structures to be manufactured with precision.

• Outstanding Corrosion Resistance: It performs exceptionally well in humid, rainy, or coastal environments, effectively resisting oxidation and corrosion to extend the product's lifespan.

Shinestage has a comprehensive supply chain management system. All raw materials come from reputable suppliers who meet international standards. Before any material enters the factory, a sample from each batch is tested with a spectrometer to ensure its chemical composition fully complies with the 6082-T6 standard, eliminating quality risks at the source.

2. Precision Cutting and CNC Forming: Millimeter-Level Accuracy

After the raw material passes inspection, it moves to the initial processing stage.

• Fully Automated Cutting: We use fully automated CNC cutting machines to precisely cut aluminum tubes to different lengths according to the design specifications. This not only boosts efficiency but, more importantly, ensures that the length tolerance of each tube is within 0.2mm, laying a solid foundation for subsequent welding and assembly.

• CNC Drilling and Milling: Every connection hole and pinhole on the truss is critical. Shinestage uses a multi-axis CNC machining center for drilling and milling. CNC technology ensures the holes are highly accurate, avoiding manual errors and guaranteeing a perfect fit when the truss is assembled on-site.

II. Welding: The Perfect Fusion of Art and Engineering

If raw materials are the bones of the truss, welding is its joints and lifeline. Shinestage understands the importance of welding, and we elevate our welding process to a perfect fusion of art and engineering.

1. Core Technology: The Exquisite Use of TIG Welding

We primarily use the TIG (Tungsten Inert Gas) welding process.

• Advantages of TIG Welding:

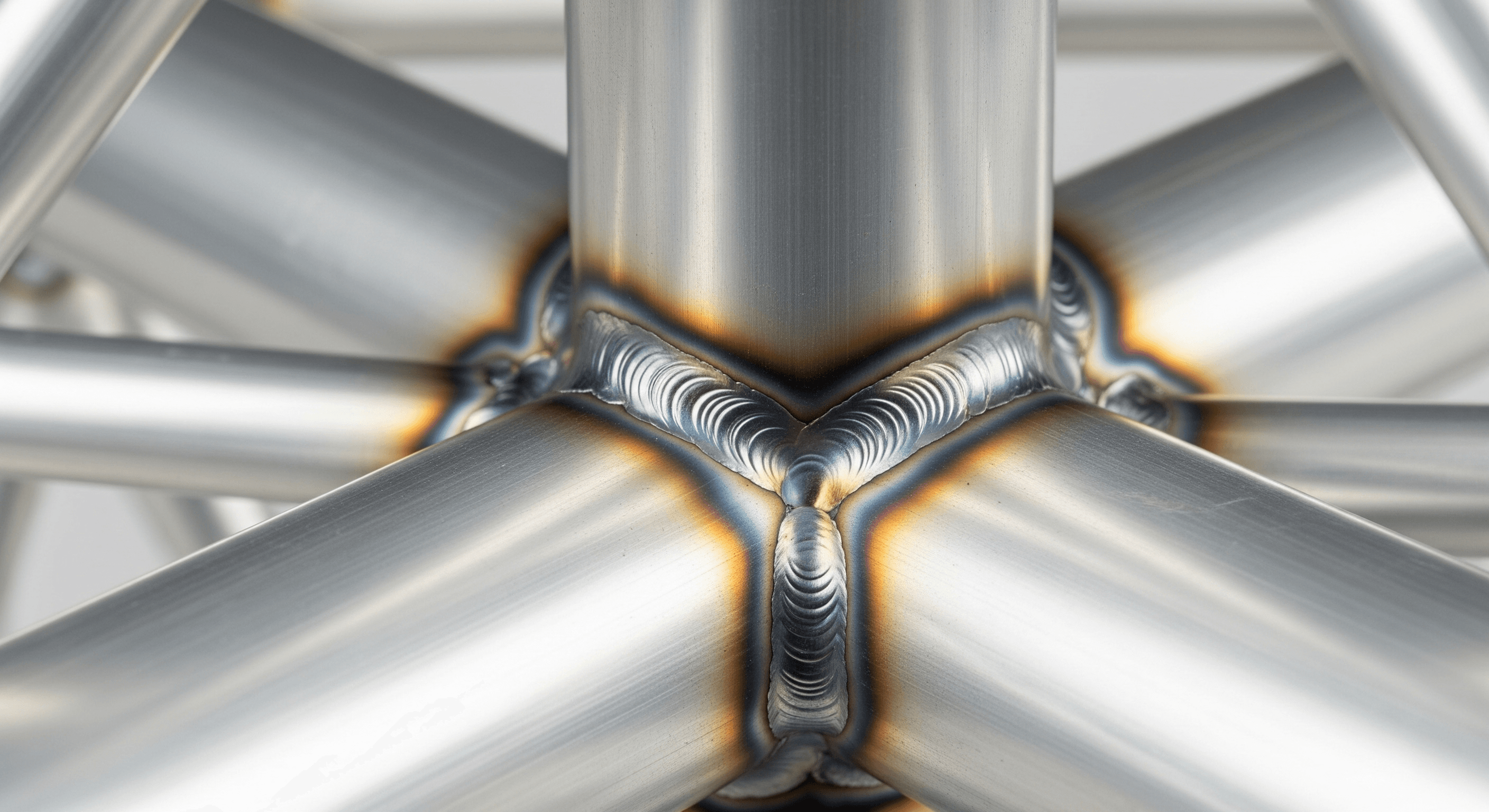

• High-Quality Welds: TIG welding produces a dense, uniform weld seam without spatter, giving it a beautiful fish-scale pattern. More importantly, it provides deep penetration, ensuring no pores or slag inclusions exist inside the weld seam, fundamentally guaranteeing weld strength.

• Precise Control: The welder can precisely control the temperature and size of the molten pool, which is crucial for welding aluminum tubes of different thicknesses and shapes.

• Greater Load-Bearing Capacity: High-quality TIG welding can create a weld seam that is stronger than the base metal itself, allowing the truss to withstand greater tension, shear force, and torque.

2. Welder Certification and Quality System

Every welder at Shinestage must pass a rigorous internal assessment and hold international certifications. We have established a comprehensive welder training and certification system to ensure every technician masters the essence of TIG welding. During the welding process, we enforce a "three-check" system:

• Self-Inspection: After completing a weld, the welder visually inspects it to ensure there are no visible defects.

• Mutual Inspection: Another welder performs a second inspection.

• Specialized Inspection: A professional quality inspector uses non-destructive testing equipment (e.g., X-ray or ultrasonic flaw detection) to inspect key welds internally, ensuring their quality is 100% reliable.

III. From Finished Product to Shipment: Strict Quality Control and Packaging

After welding is complete, the product doesn't go straight to the market. It must go through a series of rigorous quality control checks.

1. Dimensional Accuracy and Load Testing

• 3D Laser Scanning: We use a high-precision 3D laser scanner to accurately measure the truss's overall dimensions, hole positions, angles, and other parameters, ensuring every product conforms to design tolerances.

• Simulated Load Testing: We randomly select samples for simulated load testing. The truss is placed on a specialized test bench and subjected to a load that far exceeds its theoretical load-bearing capacity to observe its deformation and stability, verifying its safety performance.

2. Surface Treatment and Cleaning

Before leaving the factory, every piece of truss undergoes professional cleaning and surface treatment. This is not only for aesthetics but also to protect the aluminum alloy surface and extend its service life. We also offer custom surface coatings, such as powder coating or anodizing, to meet specific color and corrosion resistance requirements.

3. Meticulous Packaging and Global Logistics

Shinestage understands that a product's safe arrival is just as important as its quality. We use high-strength bubble wrap, foam, and wooden crates to package every product in multiple layers. For international orders, we select appropriate packaging materials based on the destination country's regulations and climate, ensuring the product arrives undamaged after long-distance transport.

IV. Shinestage: Crafting Every Piece as a Work of Art with a Craftsman's Spirit

At Shinestage, we believe every piece of truss is a work of art that carries our clients' dreams and our commitment. Our manufacturing philosophy isn't just about advanced equipment and rigorous processes; it's about every employee's unwavering dedication to quality.

We have a powerful technical team. They are not only manufacturing experts but also innovators, constantly exploring new manufacturing techniques and material applications to ensure Shinestage remains at the forefront of the industry.

Our mission is to provide the world with the safest, most reliable, and highest-quality stage equipment. We are proud of our products' exceptional performance and the craftsmanship we pour into every piece. Choosing Shinestage means choosing safety, choosing quality, and choosing a trustworthy partner.
