Taking Staging To The Next Level: Full Guide To Shinestage Stage Lift Systems

Whether for dramatic artist entrances, seamless set transitions, or vehicle reveals on a show floor, stage lift systems have become essential to live production. They provide height transformation, dynamic effects, and space efficiency, enabling next-level creativity for stage designers and producers.

At Shinestage, we engineer heavy-duty, programmable, and silent-operating stage lifts built for high-performance productions around the globe. This article offers an in-depth look at how our lifting systems function, where they shine, and why they’ve become the trusted solution in venues ranging from theaters to stadiums.

What Are Stage Lift Systems?

Stage lifts are mechanical or hydraulic platforms that vertically move objects, sets, or people. Their core purposes include:

• Revealing artists or props during performances.

• Leveling stage zones to create multi-dimensional spaces.

• Transporting equipment between backstage or basement and performance areas.

• Dynamic choreography, such as synchronized lifts or rapid scene changes.

Shinestage offers modular and custom-designed lift systems that are reliable, safe, and integrated with automated control interfaces.

Types of Shinestage Stage Lifts

1. Scissor Lift Stages

• Vertical lift using cross-linked steel arms.

• Common for car reveals, heavy load props, or entire band risers.

• Load capacity: 1,000kg–10,000kg.

• Travel height: 0.6m–4m.

2. Telescopic Lifts

• Multi-stage columns that expand upward.

• Slim design and fast vertical extension.

• Ideal for smaller platforms, solo entrances, or narrow stage areas.

3. Spiral or Screw Drive Lifts

• Quiet, precise, and low-maintenance.

• Used for slowly rising scenes or rotating plus lifting combos.

4. Chain or Belt Driven Lifts

• Suitable for fast, high-frequency cycles.

• Synchronized dual-motor versions available.

Core Components and Materials

• Frame Structure: Steel or aluminum alloy frames coated for corrosion resistance.

• Platform Surface: Anti-slip, flame-retardant plywood or aluminum checker plate.

• Drive Systems: Options include hydraulic pumps, servo motors, worm gears, and ball screws.

• Sensors: Load cells, position encoders, and pressure valves for precision and safety.

• Control Cabinet: Touchscreen panel or DMX-integrated console, supporting memory presets and show cues.

Safety Features

• Emergency stop and safety interlocks.

• Overload protection with automatic shutdown.

• Platform edge sensors to avoid pinching or collision.

• Safety skirt curtains and mechanical locking arms.

• Noise reduction layers for silent upward/downward motion.

All Shinestage lift systems are designed and certified under:

• EN ISO 12100 (Safety of Machinery)

• ANSI E1.6 (Stage Machinery Standards)

• CE compliance for electrical and mechanical parts

Global Application Scenarios

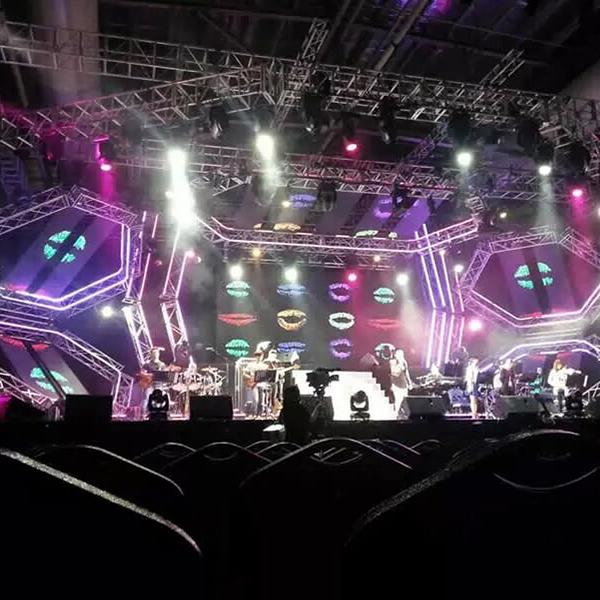

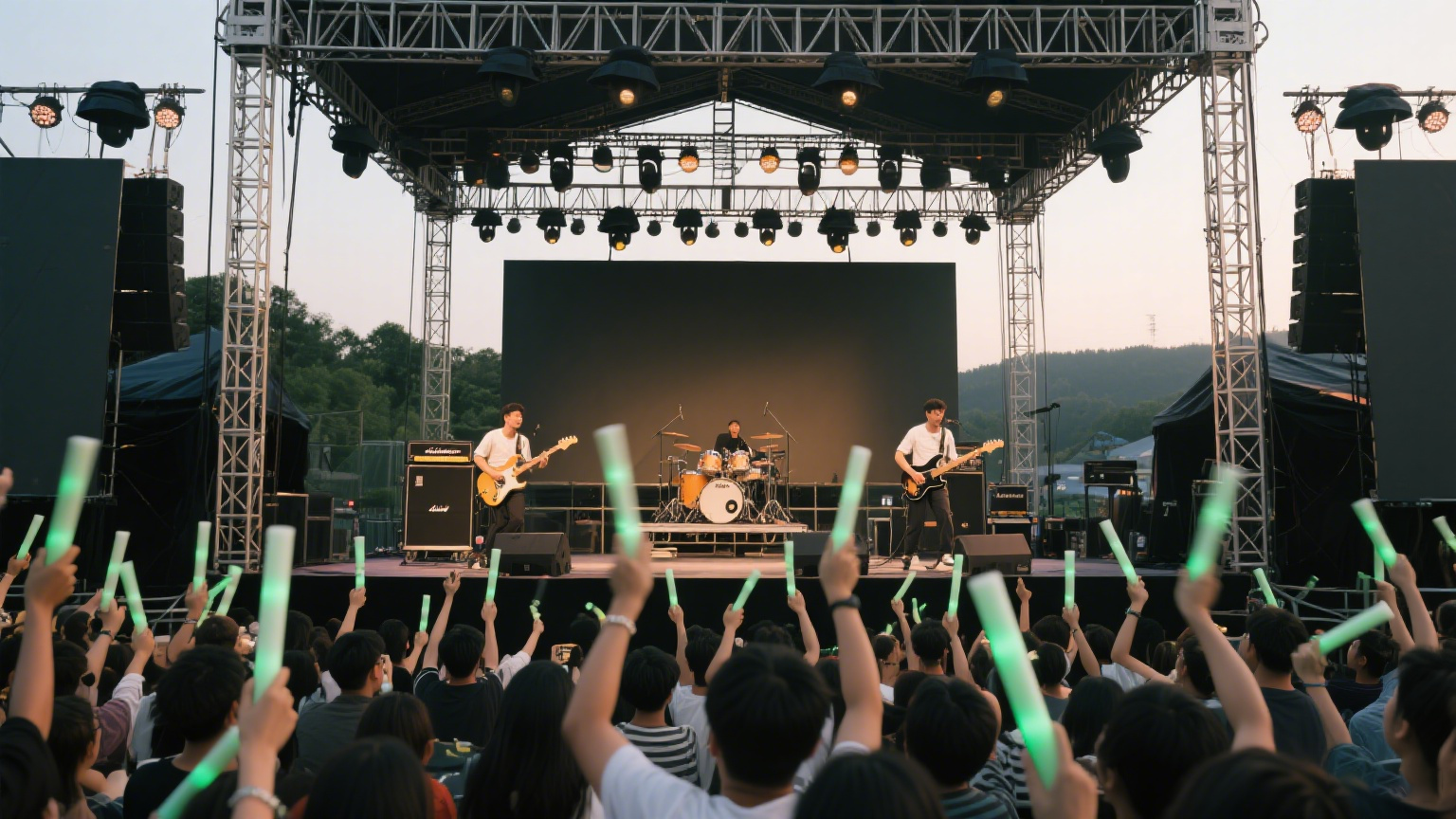

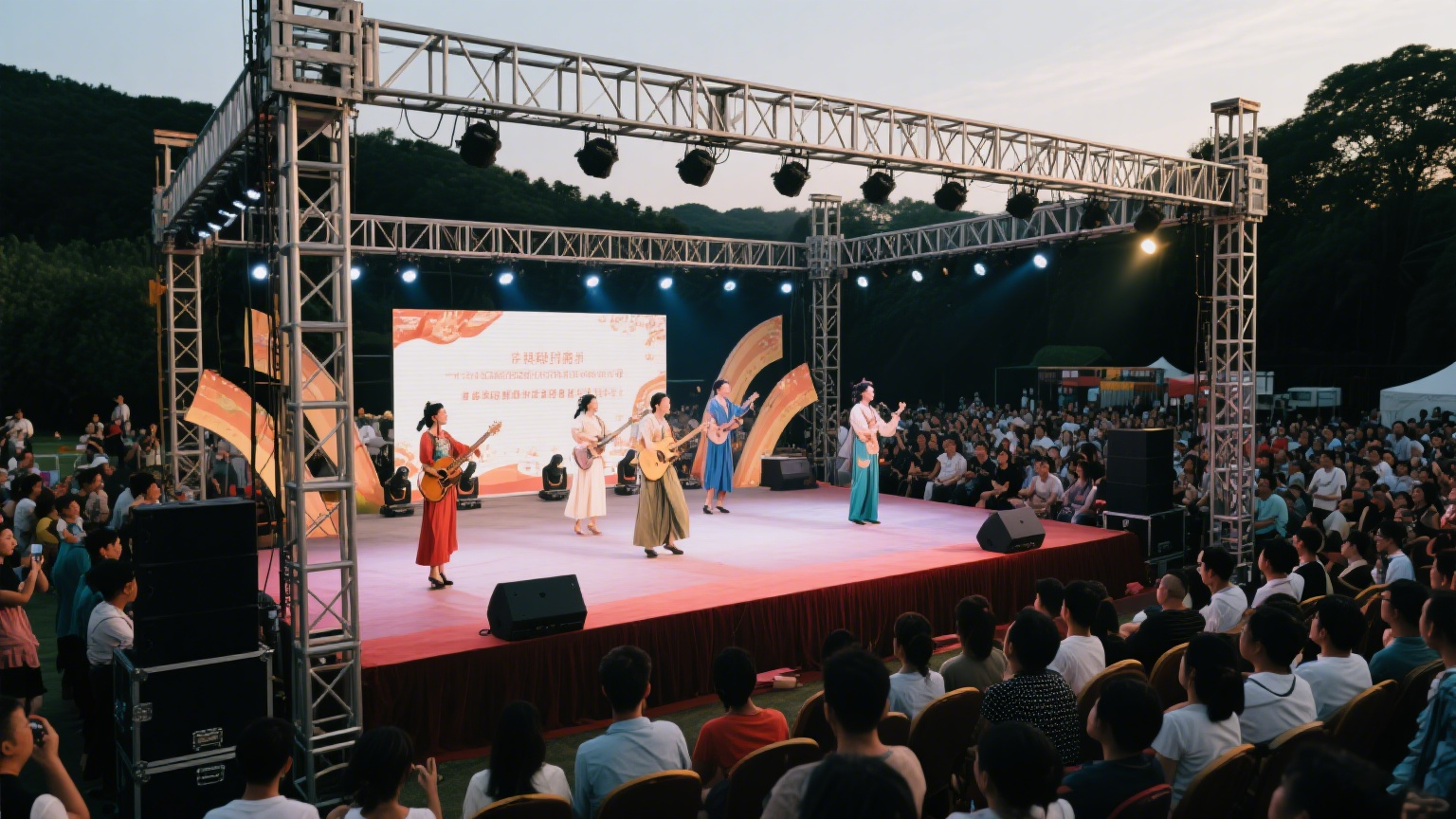

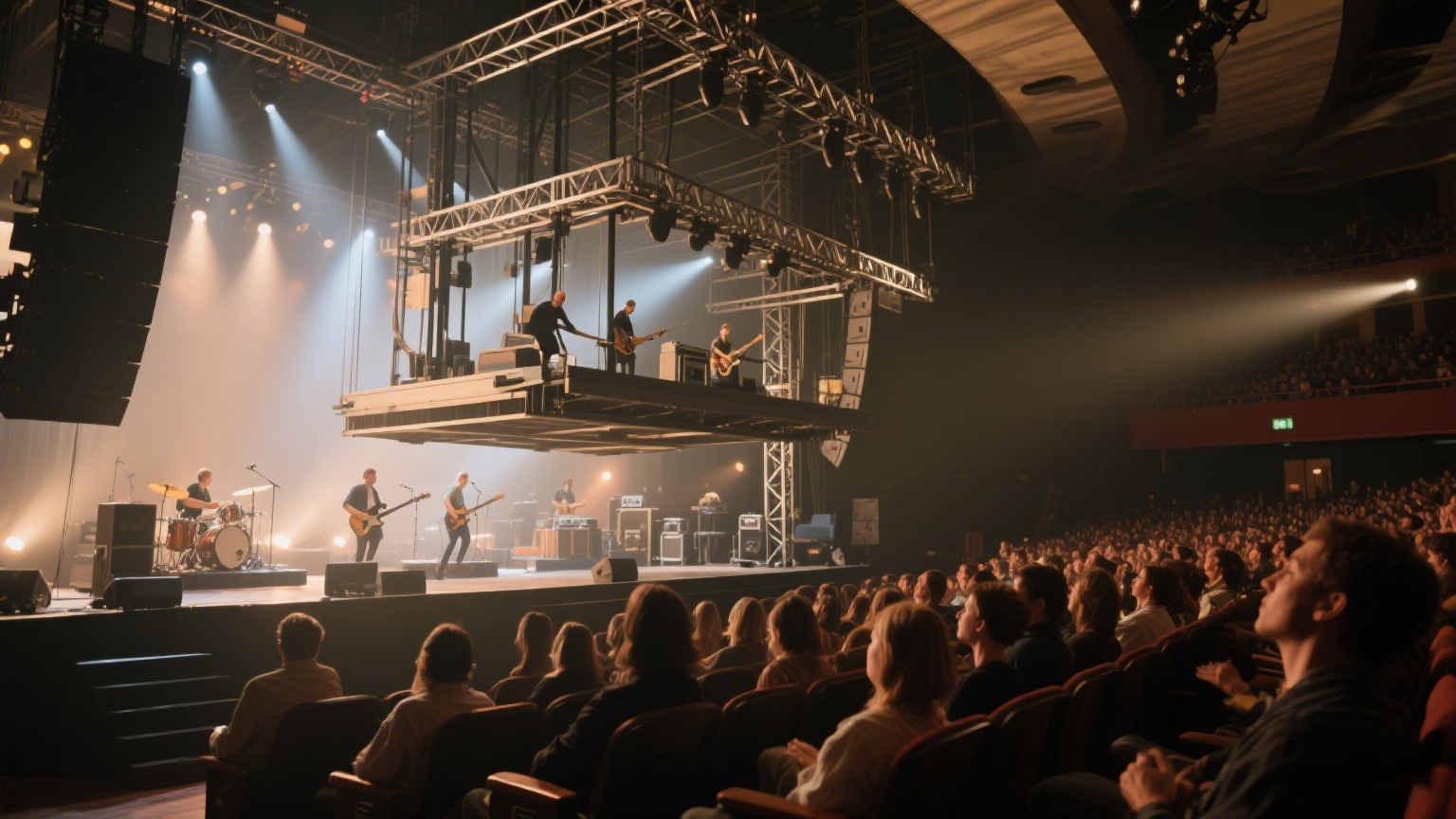

Concerts and Festivals

• Performer entry/exit platforms with programmable speeds.

• Integration with rotating stages and trap doors.

• Elevating DJ booths or LED video columns.

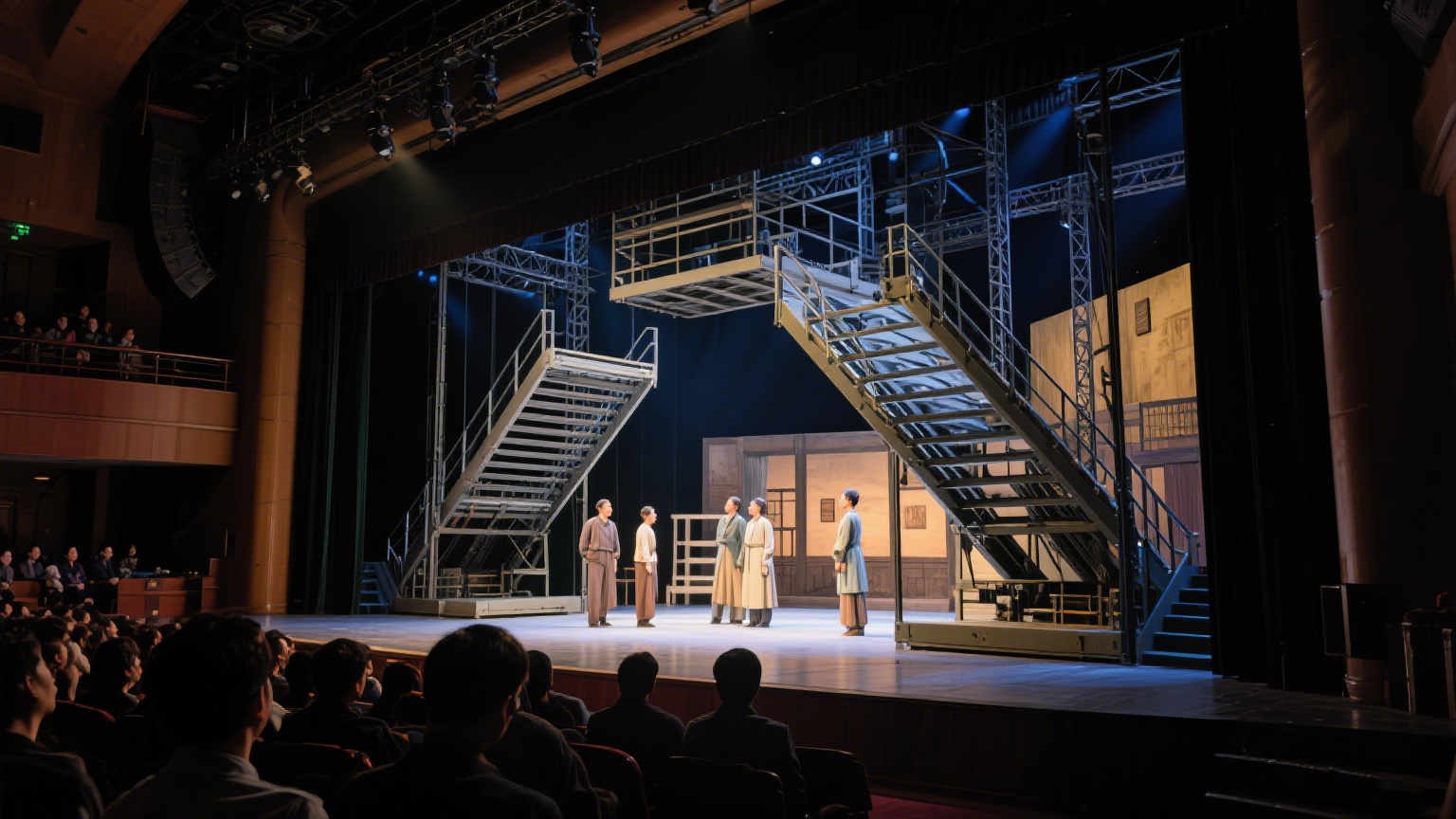

Theatrical Productions

• Quiet, slow-rise lifts for stage effects or changing scenes.

• Trapdoors or orchestra pit elevation in classic theaters.

TV and Film Studios

• Hidden lifts under stage floor for camera, light, or scenic lifts.

• Controlled reveal of talent or brands during live broadcast.

Auto and Product Shows

• Car lift platforms for high-end launches and 360-degree product reveals.

Religious Events and Conventions

• Multi-stage platforms to elevate choirs, speakers, or altars dynamically.

Integration Capabilities

• DMX/ArtNet compatibility for syncing with lighting and media.

• Truss-mounted lift support for overhead objects (e.g., screens or chandeliers).

• Remote control pads for manual overrides or wireless operation.

• Automated sequences based on timeline triggers.

Installation and Maintenance

• Installation support via CAD layout plans and technician guidance.

• Platform base requires stable foundation; customizable for touring or fixed installations.

• Routine checks recommended:

• Lubrication of moving joints.

• Cable or belt inspection.

• Pressure calibration (hydraulics).

• Software and motor feedback logs.

Shinestage offers:

• Global delivery & on-site support

• Modular kits for temporary builds

• Replacement parts and repair manuals

Case Studies from Around the World

• Dubai Auto Expo: Dual scissor lifts raised full-size SUVs through trapdoors in a synchronized cue.

• Thailand Music Awards: Center lift revealed artist intro with fog and LED integration.

• Argentina National Theater: Telescopic lift used for changing props mid-scene with no stagehands needed.

• Chinese Spring Festival Gala: Multi-lift array created a moving staircase effect across the stage.

Innovation and Future Development

• Smart diagnostics using IoT sensors for real-time wear data.

• Magnetic elevation drive systems to reduce noise and improve speed.

• Eco-friendly hydraulic fluids and power-saving motors.

• Voice-assisted lift control interfaces for large AV production teams.

Conclusion

Shinestage stage lift systems transform flat stage spaces into dynamic, multilayered experiences. Engineered with precision, safety, and automation in mind, our lifts support the demands of global productions where timing, reliability, and audience impact are everything. Whether you need a simple platform lift or a fully integrated automated lift sequence, Shinestage offers the solutions that elevate performance—literally.
