Project Spotlight: How Shinestage Custom-Engineered a Complex Stage Solution for a Global Music Festival

Every major music festival is a marvel of engineering. Behind the tens of thousands of cheering fans are countless precise calculations, meticulous planning, and powerful execution. This article will give you an exclusive look at the customized stage solution Shinestage provided for a globally renowned music festival held in an extreme environment. From the initial client request to facing the challenges of complex terrain, extreme weather, and ultra-high load-bearing requirements, we'll detail the entire process, demonstrating Shinestage's professional capability and innovative spirit in solving complex large-scale project challenges.

I. The Project Challenges: A Triple Threat in a Complex Environment

This music festival project was located in an outdoor venue with undulating terrain and a highly variable climate. The client's vision was to build an unprecedentedly large stage to accommodate huge LED screens, complex lighting systems, and world-class sound equipment. However, from the start, we faced three severe challenges:

1. Complex Terrain: The stage venue was not flat; it had a slope and soft ground. Traditional stage construction methods could not guarantee absolute stability and safety.

2. Extreme Weather: The region experiences frequent thunderstorms and strong winds in the summer. This demanded a stage structure with exceptional wind resistance and reliable waterproofing.

3. Ultra-High Load Requirements: The stage roof needed to suspend line array speakers and LED screens weighing over 10 tons in total, plus over 5 tons of lighting equipment. A standard truss system could not meet such immense load-bearing demands.

II. The Customized Solution: Engineering a Concept into Reality

Faced with these challenges, Shinestage's engineering team didn't back down. We understood that this was more than just a simple truss sales project; it was a comprehensive test of our technical strength and innovative capabilities.

1. Structural Optimization and Mechanical Analysis

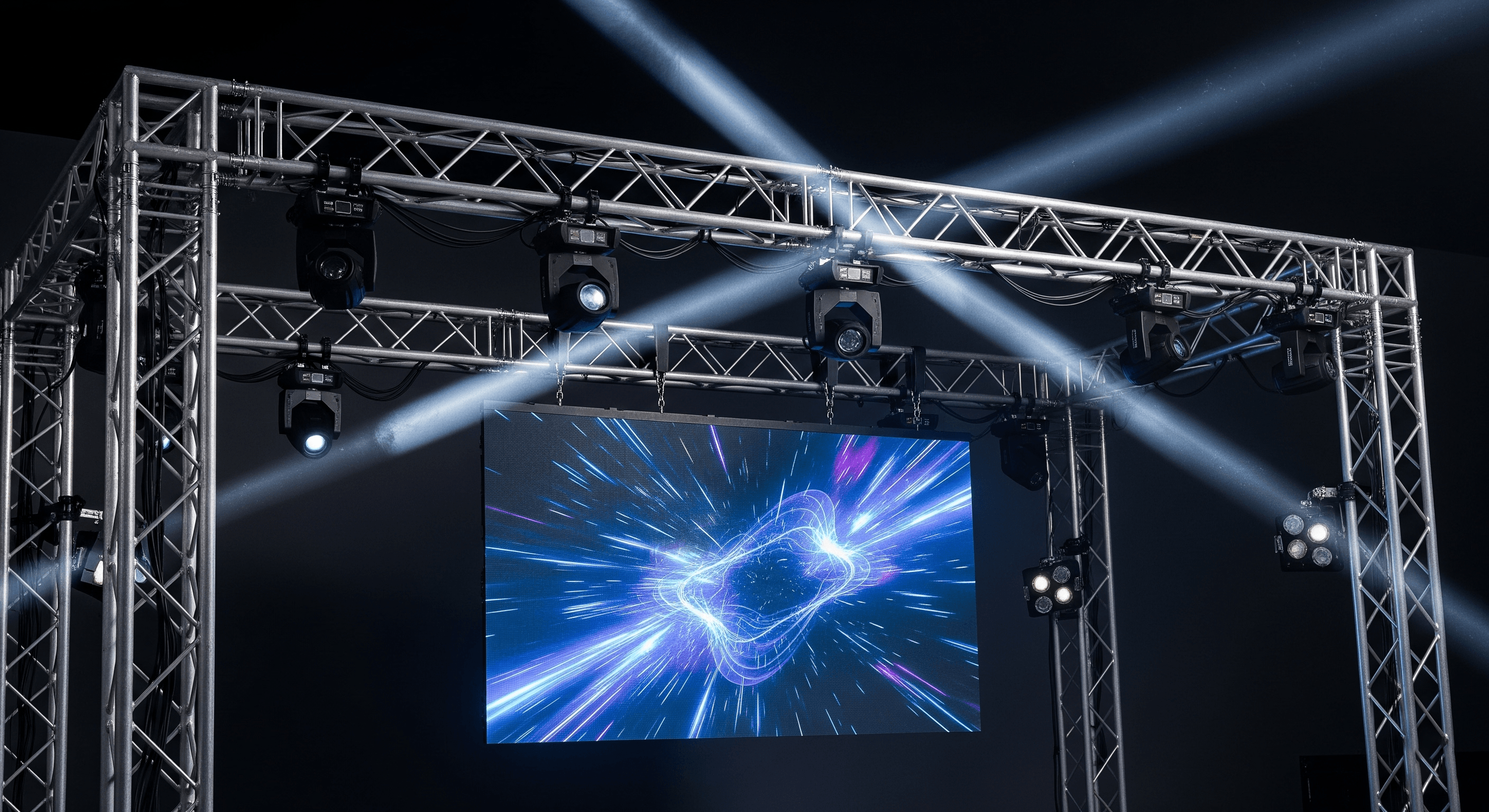

We abandoned standard stage structure designs and adopted a more stable "Box Truss Roof" system. This system is composed of heavy-duty square truss, forming a rigid box-like structure that more effectively distributes wind and vertical loads. We used professional Finite Element Analysis (FEA) software to perform a detailed mechanical analysis of the entire stage structure.

• Wind Load Calculation: We simulated the forces under different wind speeds and directions. By adjusting the truss spacing and angles and adding diagonal braces, we minimized the drag coefficient.

• Dynamic Load Analysis: We treated the weight of the LED screens, sound systems, and lighting as a dynamic load, calculating the extra stress caused by swaying and vibration during the performance. We then designed a redundant structure to ensure the safety factor far exceeded international standards.

2. Foundation Solution: The Root of All Stability

Due to the soft ground, we designed special heavy-duty base plates for the stage. These bases were made of thick steel plates and could be reinforced with counterweights. On-site, we used laser levels to precisely level each base, ensuring the entire stage's foundation was perfectly horizontal, effectively preventing tilting and settling caused by an unstable foundation.

3. Manufacturing and Logistics: Ensuring Perfection in Every Step

After the design was finalized, our manufacturing department immediately began production. We custom-made special thickened square truss for this project and used the highest standard of fishtail welding at all key connection points.

• Strict Quality Control: Every piece of truss was inspected with ultrasonic flaw detection and underwent simulated load testing before leaving the factory.

• Efficient Logistics Coordination: Given the tight project timeline, our logistics team worked closely with the client to create a detailed transportation plan, ensuring all equipment arrived on-site safely and on time.

III. On-Site Setup: Perfect Execution by a Professional Team

Design and product are only half of the success; perfect execution on-site is equally crucial.

• Team Collaboration: Shinestage sent an experienced technical team to the site. They worked closely with the client's stage design, lighting, and sound teams, following the design drawings to set up the stage in an organized manner.

• Real-time Monitoring: During the stage setup, our team used professional equipment like anemometers and inclinometers to monitor the stage's stability in real time, ensuring every operation complied with safety regulations.

• Technical Guidance: For the client's on-site crew, our team provided detailed setup and equipment installation guidance, ensuring they could complete their tasks safely and efficiently.

IV. Results and Reflection: A Dual Victory of Safety and Innovation

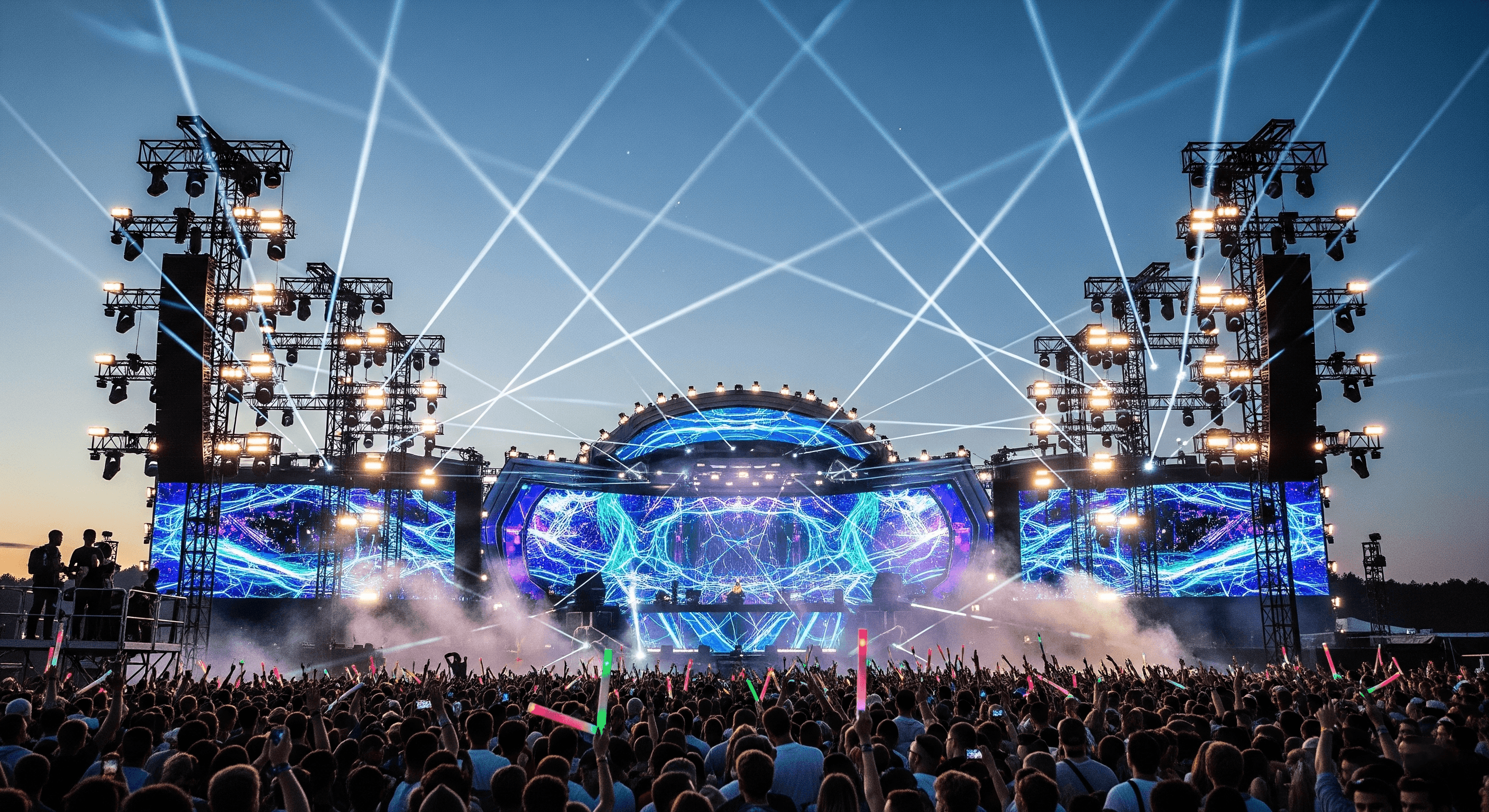

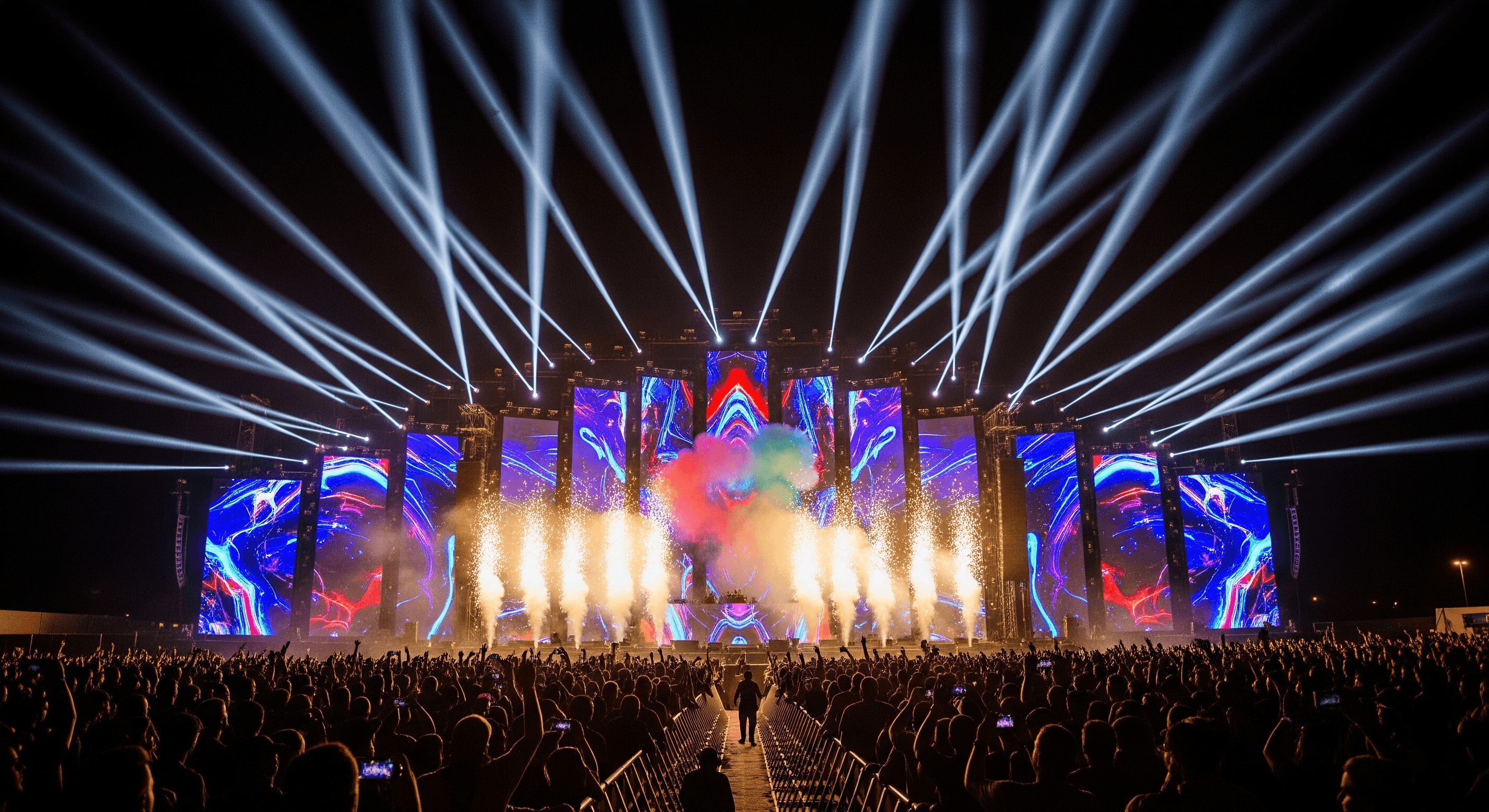

After weeks of intensive work, an unprecedentedly majestic stage stood perfectly at the music festival venue. Over several days of performances, the stage withstood the test of heavy rain and strong winds, remaining as solid as a rock. The client gave Shinestage's professional capabilities and excellent products the highest praise.

This project was more than just a commercial success; it was the ultimate proof of Shinestage's technical strength. It showed us that when facing complex challenges, only with professional knowledge, a rigorous attitude, and relentless innovation can you provide a truly safe and reliable solution for your clients.

Shinestage is always committed to being your most trusted partner. No matter how grand or complex your project, we have the confidence and ability to custom-engineer the perfect stage solution for you.
