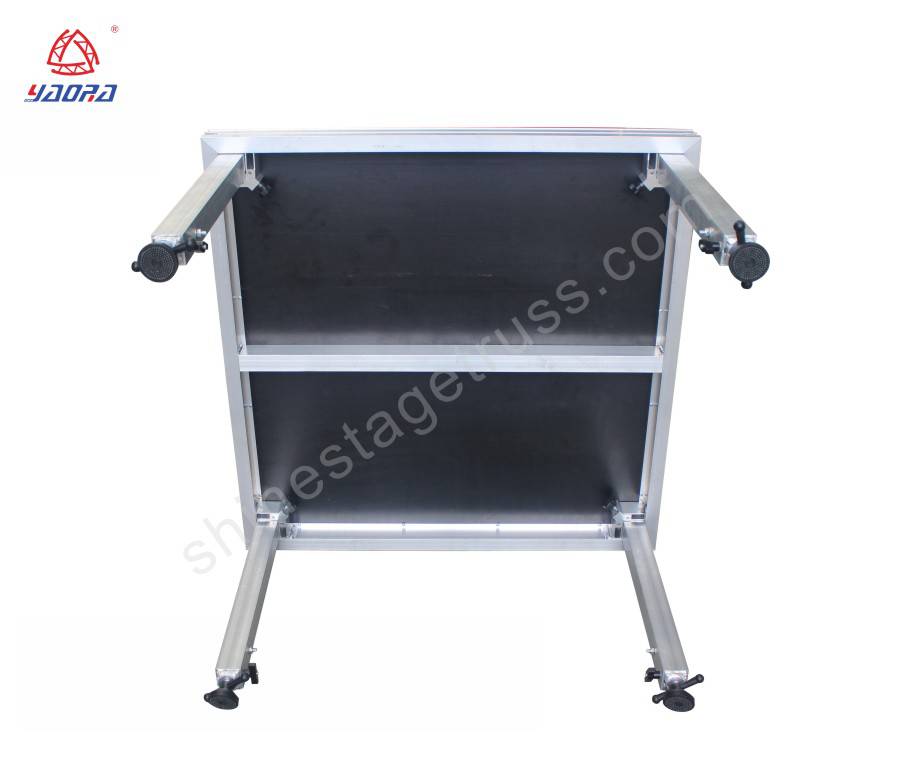

Adjustable Aluminum Quick Stage 1.2M Square

MaxiMum Load:1000KG/m2

Standard Size:1.22*1.22M,


Frame Material:Aluminum 6061 T6

Stand Height:MINIMUM:80MM,MAXIMUM:2000MM

Stage Board:Plywood With Carpet , Acrylic, ANTI Slip Plywood,Glass


Loading table Product introduction Comparative advantage Supporting system Certification Project Ask price

Product introduction

The aluminum fast-Install performance stage is also called the Quick stage, the activity stage, The quick Stage is made up of Stage Pannel, Stage Leg and Stage Frame. Stage stairs..., We have the patented with Aluminum quick stage.It has been applied to the school stage, hotel、wedding stage, large performance stage, equipment hire / and sound engineering stage, cultural institutions stage, multi-function hall stage and other large-scale event stage.


1.The structure inside the frame is "Japanese character" type design, the middle reinforcement 40*58*3.0 square tube greatly improves product stability,load capacity;

2.Adjustment has a wide range of high precision and strong load-bearing capacity. The stage is welded with 3mm thick aluminum alloy profiles. The panel is made of 18mm thick panel. It consists of two parts: the stage panel and the stage adjustment leg. It is certified by a third-party authority: SGS, CE, TUV certification, 800-1200kg per square foot, stage retreat The storage and transportation inside the storage frame is small.

3.The installation is quick and efficiently,No tools are needed.The 100 square meters can be built in 40 minutes.

Solutions & Quotations

Comparative advantage

Column Clamp Lock Design | Quick Install

Column clamp quick lock wrench design ,Can be installed 50sqm stage only takes 15mins by 2people without any tools

Leg Design | Adjustability:

With scale telescopic adjustment stage leg height,ajustment height from 300-1500mm,Adjustment Legto Proper Height Quickly Suits any Scene Envirment.

Modular Design | Connect and Build

Modular design Connect and build with Steel high-strength stage frame clamps between stages,Provide Large Platform with Stable,Comfortable,Effective.

The border has a high-level powerful velcro, you can arbitrarily post Table skirt

Leg Clamps Design | Stable Connection

Fully fit aerospace profile leg clamps to ensure amore stable connection between the stage legs,forming a stage overa

Supporting system


CE Certifiction
SGS Certifiction -1
SGS Certifiction -2
TUV Certifiction
Truss TUV Certifiction
Bleacher TUV Certifiction
Stage TUV Certifiction
Barrier TUV Certification
Truss TUV Certifiction -2
ISO9001 Certificate
Barrier Utility Patent Certificate
Barrier Trolly Utility Patent Certificate
Stage Utility Patent Certificate
Bleacher Utility Patent Certificate
Catwalk Truss Utility Patent Certificate
Alibaba Golden Supplier Certification
