YSPC12 Electric Wire Collector

Shinestage , as a comprehensive service integrator with creative culture as its core , will continue toconsolidate and improve its marketing network by strengthening technical research and product development , improve theservice level of the overall solution , and deepen its expansion into various business areas .

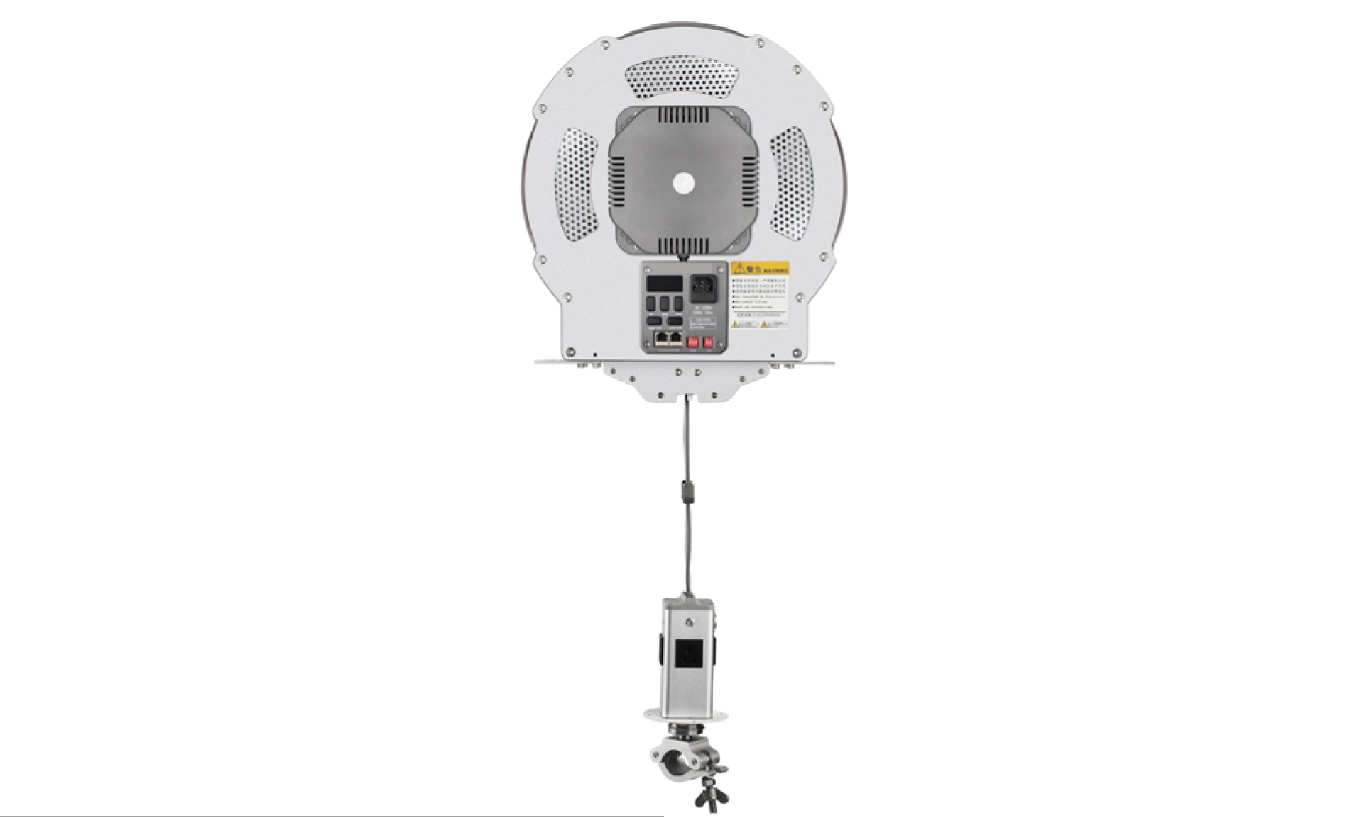

YSPC Electric Wire Collector take-up can be matched with C10 series electric hoist products to form a complete ceiling lifting solution or used independently. It has the function of active wire pay-off and wire take-up. Heavy equipment adaptive matching. Installed on ceilings or high altitudes, it is used for remote power supply and signal control of hoisting lighting and audio equipment. The patented winding wheel slipping device and spring buffer device ensure that the pulling of the equipment during startup will not damage the cable, and avoid The cable is broken due to human error.

Characteristics

Optional accessories: Wireless power manager key for multiple emergency braking.

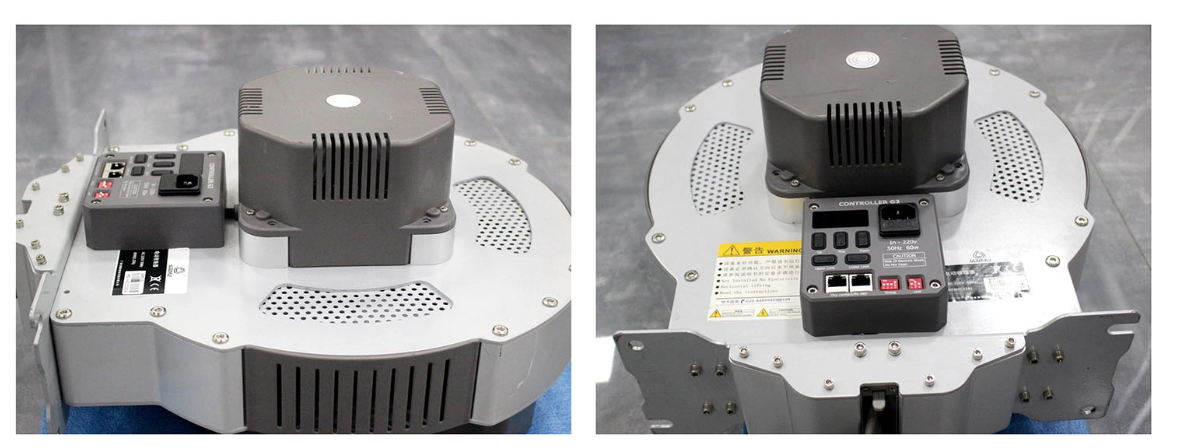

Receiver cable interface: four 16A socket (four groups of 2.5 square power cable defined by the customer) two 5-pin DMX512 interface

Standard with upper and lower limit to prevent overtravel.

Standard with built-in optocoupler sensor: any stroke positioning can be set.

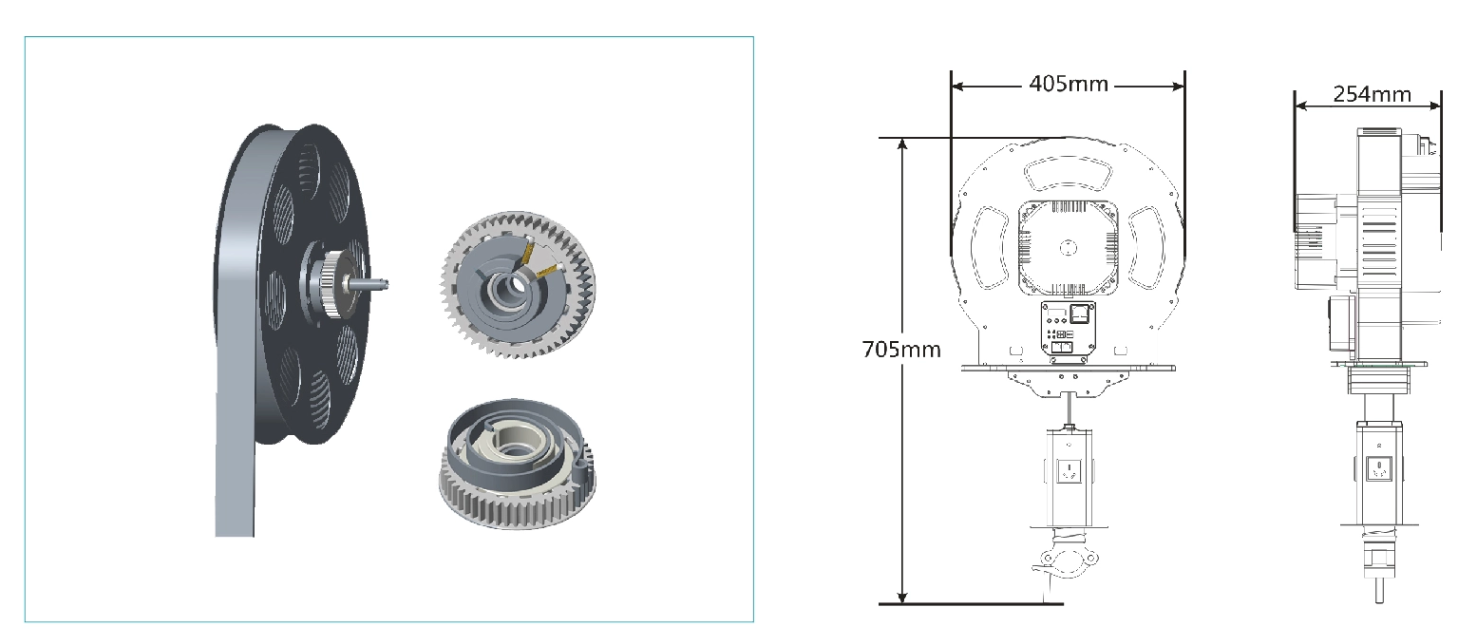

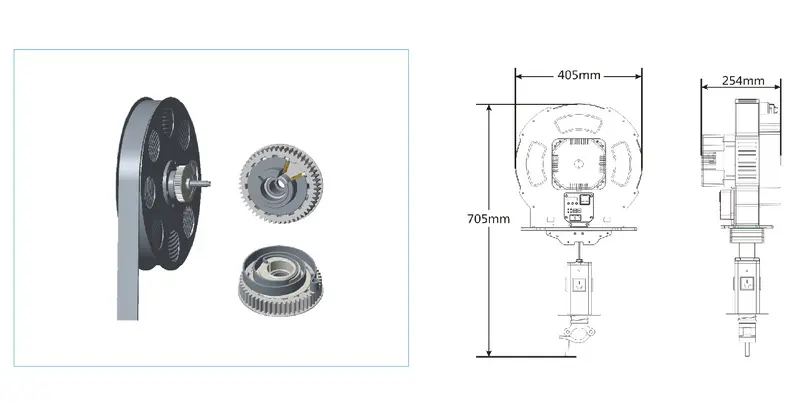

Winding wheel slipping device: The unique patented technology of winding wheel slipping device ensures that the cable will not be pulled off by external force.

Mechanical double limit switch: Mechanical double limit switch to prevent out of travel.

Control mode: weak electric dry contact, Rs485.

Speed control mode: adaptive crane speed ≤ 4M/min.

Maximum cable tension: 8KG.
